A bathroom typically has four drain types: sink, shower, bathtub, and toilet, plus a floor drain in some layouts. Each uses a different trap design and pipe size, from a 1 ¼-inch sink drain to a 3- or 4-inch toilet drain, based on how much water it carries.
A bathroom rarely has just one kind of drain. The sink, shower, tub, and toilet each move water differently, and each relies on a trap and pipe sized for its own job. Knowing the difference matters when a fixture clogs, when a remodel changes a floor plan, or when a homeowner is simply trying to understand why one drain in the bathroom behaves so differently from another.
This article walks through the main types of bathroom drains, including the toilet’s built-in trap system, and explains what sets each one apart: trap design, pipe size, and the kind of problems each one tends to develop. It also points to where deeper troubleshooting guides pick up once a specific drain needs attention.
Types of Bathroom Drains at a Glance
A bathroom typically includes up to five drain types, each with its own trap design and pipe size. The table below compares the sink, shower, bathtub, floor drain, and toilet at a glance before each is explained in detail.
| Drain Type | Typical Trap | Standard Drain Pipe Size | Commonly Recommended Size | Key Feature |
|---|---|---|---|---|
| Bathroom sink | P-trap under the cabinet | 1 ¼ inch minimum | 1 ½ inch | Pop-up stopper and basin overflow channel |
| Shower | P-trap below the shower base | 1 ½ inch minimum (older code) | 2 inch | Flat strainer or linear drain, no built-in overflow |
| Bathtub | P-trap tied to an overflow drain | 1 ½ inch minimum | 2 inch | Trip-lever, pop-up, or toe-touch stopper |
| Floor drain | P-trap set into the slab | 2 inch minimum | 2 to 3 inch | Needs periodic water refill to keep the trap sealed |
| Toilet | Built-in trapway inside the bowl | 3 inch minimum | 3 to 4 inch | No separate P-trap fitting, the trap is molded into the fixture |
Exact pipe sizes vary by local code adoption (IPC or UPC) and jurisdiction, so figures above should be confirmed against the applicable local code before publication.
Bathroom Sink Drains
A bathroom sink drain is built around a pop-up stopper connected to a lift rod, which sits above a P-trap under the cabinet. Most residential sink drains use a 1 ¼-inch pipe, though many plumbers recommend 1 ½ inches for better flow, especially on larger vanities or double-sink setups.
Pop-Up Stopper Mechanism
The pop-up stopper raises and lowers with a lever behind the faucet, letting a homeowner fill or drain the sink without touching the drain itself. Hair and soap residue tend to collect on the underside of the stopper first, which is why it’s usually the first place to check when a bathroom sink drains slowly.
P-Trap and Overflow Channel
The P-trap holds a small amount of water to block sewer gas from entering the bathroom, and it’s the most common place for hair and soap scum to build up. A built-in overflow channel near the rim of the basin routes excess water into the drain if the sink fills past capacity, connecting into the same trap as the main drain.
Shower Drains
Shower drains sit at floor level rather than under a cabinet, which changes both how they’re built and how they’re serviced. A standard shower drain uses a 2-inch pipe, wider than a typical sink drain, to handle the higher water volume from a shower head.
Point Drains vs. Linear Drains
A point drain is the traditional round strainer placed in the center or corner of a shower base. A linear drain runs along one edge of the shower floor and is more common in curbless or walk-in shower designs. Both connect to the same type of P-trap below the shower pan, though a linear drain’s trap sometimes sits in a slightly different position depending on the installation.
Trap Location and Access
A shower’s P-trap is usually set into the floor or behind an access panel, rather than sitting in an open cabinet like a sink trap. This makes routine cleaning less convenient and is one reason hair mats can build up longer in a shower drain before anyone notices a slowdown.
Shower Drain Materials
Shower drain bodies are commonly made from PVC, ABS, or cast iron, depending on the age of the home and the type of shower base installed. A tiled shower floor typically uses a drain with a clamping ring that grips a waterproofing membrane, while a prefabricated shower pan usually connects with a simpler slip-fit or threaded drain body. The material and connection type affect how a plumber accesses the trap during a repair, since a tiled shower often requires removing a section of tile to reach the drain body directly.
Bathtub Drains
A bathtub drain shares some features with a shower drain but adds an overflow opening near the top of the tub wall, which ties into the same trap as the main drain. Bathtub drain pipes typically range from 1 ½ to 2 inches, depending on the tub’s size and local code.
Trip-Lever, Pop-Up, and Toe-Touch Stoppers
Bathtub stoppers come in three common designs. A trip-lever stopper uses a lever on the overflow plate to raise and lower a plunger-style stopper deep in the drain. A pop-up stopper works like a sink stopper, lifting with a twist or a lever. A toe-touch stopper opens and closes when pressed directly. Each design has different points where hair and debris tend to collect, which affects how the drain is cleaned.
Overflow Connection
The overflow drain exists mainly as a safety feature to prevent the tub from spilling over, but it shares plumbing with the main drain line. A clog anywhere in that shared line can affect both drainage speed and how well the overflow functions.

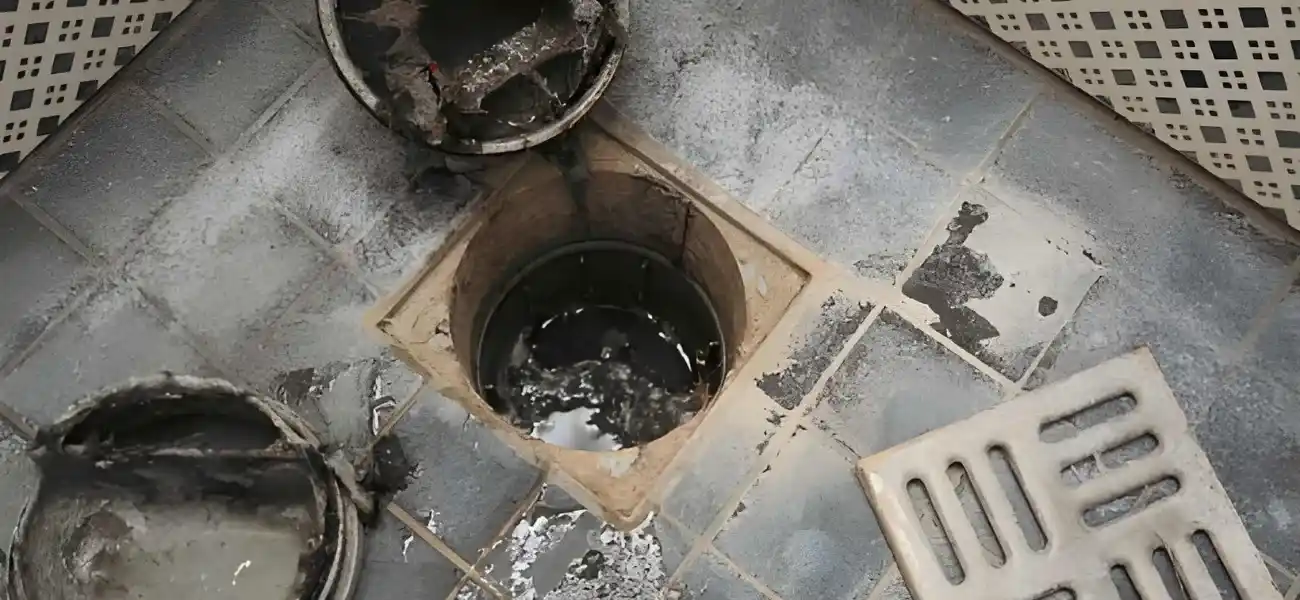

Floor Drains
Floor drains appear less often in bathrooms than the other types, but they’re common in walk-in showers, wet rooms, and some older bathroom layouts. A floor drain uses a P-trap set directly into the slab, typically with a 2- to 3-inch pipe.
Why Floor Drains Need Periodic Water
Because a floor drain isn’t used every day the way a sink or shower is, the water inside its trap can evaporate over time. Once that happens, the trap no longer blocks sewer gas, which is often the source of an unexplained odor in a bathroom with a floor drain that isn’t part of daily foot traffic. Pouring a cup of water down the drain every few weeks keeps the trap sealed.
Drain Body Materials
Bathroom drain bodies and P-traps are typically made from PVC, ABS plastic, or chrome-plated brass. PVC and ABS are the most common choices in new construction because they resist corrosion and are inexpensive to replace. Chrome-plated brass traps are often used where the trap is visible, such as under a pedestal sink, since they hold up better to daily handling and look more finished than plastic. Older homes sometimes still have uncoated brass or, in much older construction, cast iron traps, both of which can corrode internally over time and eventually need replacement even without a clog.
Toilet Drains: The Trapway System
A toilet drain works differently from every other bathroom drain because its trap is built into the fixture itself rather than installed as a separate pipe fitting.
Built-In Trapway vs. a Standard P-Trap
Instead of connecting to a P-trap under the floor, a toilet’s bowl includes an S-shaped or serpentine passage called the trapway, molded directly into the porcelain. This trapway holds water the same way a P-trap does, sealing out sewer gas, but it also means clogs often form inside the bowl itself rather than further down the pipe.
Closet Flange and Wax Ring
Below the toilet, a closet flange anchors the fixture to the floor and lines up with the drain pipe underneath. A wax ring (or a wax-free gasket alternative) seals the connection between the base of the toilet and the flange. A failing wax ring doesn’t cause a clog, but it can cause water to leak at the floor when the toilet is flushed, which is sometimes mistaken for a drain problem.
Toilet Venting and Why It Matters
Like every other drain in the bathroom, a toilet’s drain line connects to a vent stack that allows air to enter the system as waste flows out. Without proper venting, a toilet can flush weakly, gurgle, or drain slowly even with no actual clog in the trapway, since trapped air pressure can hold water back. A vent problem is easy to mistake for a clog, which is one reason a recurring “phantom” flushing issue sometimes needs a camera inspection rather than repeated plunging.
3-Inch vs. 4-Inch Toilet Drain Lines
Toilets typically connect to a 3-inch drain pipe, though many current installations use 4-inch pipe, which several plumbing professionals note handles solid waste with less risk of clogging over time. The exact requirement depends on local code adoption.
Trap Types Used in Bathroom Drains
Every drain in a bathroom relies on a trap to keep sewer gas out, but the trap design varies more than most homeowners realize.
A standard P-trap, shaped like the letter P on its side, is used for sinks, showers, bathtubs, and floor drains. It holds a small column of water inside its curve, and that water column is what blocks gas from traveling back up through the fixture. An S-trap, an older design shaped like the letter S, is no longer permitted under most current plumbing codes because its shape can siphon out its water seal too easily, allowing sewer gas into the room. Homes with older plumbing sometimes still have S-traps in place, and replacing one with a properly vented P-trap is a common upgrade during a bathroom remodel.
A toilet’s trapway is a special case: rather than being a separate fitting, it is molded directly into the porcelain bowl as part of the fixture itself. This is why a toilet clog is diagnosed and cleared differently than a sink or shower clog, using a toilet auger or a plunger shaped to fit the bowl rather than a standard drain snake.
Common Problems by Drain Type
Each bathroom drain type tends to develop a different kind of problem, largely based on its trap design and how often it’s used.
- Sink drains usually slow down from hair and soap scum caught on the stopper or in the P-trap.
- Shower drains face the same causes as sinks but often build up longer before anyone notices, since the trap is harder to reach.
- Bathtub drains can develop clogs at the stopper mechanism itself, in addition to the trap, depending on the stopper design.
- Floor drains more often develop odor problems from a dried-out trap than an actual blockage.
- Toilet drains clog from within the trapway itself, often from non-flushable items or too much toilet paper at once, rather than from hair or soap residue.
When to Call a Professional
Call a licensed plumber when a toilet or drain clog won’t clear, water appears at the base of a fixture, or reaching the trap requires opening a wall or floor. A few specific situations call for a professional rather than continued DIY troubleshooting:
- A toilet clogs repeatedly even after plunging, which can point to a partial blockage in the trapway or the drain line beyond it.
- A floor drain or shower drain backs up along with other fixtures, suggesting a problem in the shared branch or main line.
- Water appears at the base of a toilet after flushing, which often means the wax ring needs replacement rather than the drain itself being clogged.
- A drain requires opening a wall, floor, or slab to access the trap or pipe.
Homeowners should avoid removing a toilet to inspect the trapway, cutting into a floor to reach a shower or floor drain trap, or using excessive force on a stuck toilet auger, since these tasks carry a risk of damaging fixtures or flooring. A stuck toilet auger that won’t advance or retract, standing water that doesn’t recede after multiple plunge attempts, or a persistent sewer odor with no visible cause are all reasonable points to stop DIY efforts and bring in a licensed plumber. When to Call an Emergency Plumber covers signs that a bathroom drain issue needs urgent attention.
Frequently Asked Questions
Why does my toilet drain differently than my bathroom sink?
A toilet’s trap is molded directly into the bowl as part of the trapway, while a sink relies on a separate P-trap fitting under the cabinet. This means a toilet clog usually sits inside the fixture itself, while a sink clog is more often located in the trap or the pipe just past it.
Do all bathroom drains use the same size pipe?
No. Pipe size depends on the fixture and how much water or waste it carries. Sinks typically use 1 ¼- to 1 ½-inch pipe, showers and tubs use 1 ½ to 2 inches, and toilets require 3 to 4 inches to handle solid waste.
What is a floor drain’s trap primer, and do I need one?
A trap primer is a small device that periodically adds water to a floor drain’s trap to keep it sealed, since floor drains aren’t used daily the way a sink or shower is. Not every floor drain has one installed, and manually pouring water down the drain every few weeks accomplishes the same goal.
Why does my shower drain slower than my bathroom sink even though both clog the same way?
A shower’s P-trap usually sits lower, often behind an access panel, making it less convenient to clean than a sink trap under an open cabinet. Because of that, hair and soap buildup can accumulate longer in a shower drain before it becomes noticeable.
Can a bathtub’s overflow drain cause a clog on its own?
The overflow drain rarely clogs by itself, since it mainly carries excess water rather than hair or soap residue. However, because it shares plumbing with the main tub drain, a clog anywhere in that shared line can affect how well both the drain and the overflow function.
Is a 3-inch or 4-inch toilet drain better?
Both sizes meet code in many jurisdictions, but a 4-inch drain line generally provides more clearance for solid waste and paper, which some plumbers note can reduce the frequency of clogs over time. Local code requirements determine which size applies to a given installation.
