A water heater dip tube is a plastic tube that carries incoming cold water to the bottom of the tank so it heats properly, instead of mixing with hot water at the top. A cracked or disintegrated tube causes lukewarm water and can usually be replaced in under an hour.
A shower that starts hot and turns lukewarm within a minute or two sends most homeowners straight to the heating element as the suspect, when the actual cause is often a much smaller, cheaper part they’ve never heard of. This article explains what a dip tube actually does inside the tank, why it fails, the specific signs that point to it rather than a bigger problem, and the exact steps to replace one yourself.
What Is a Water Heater Dip Tube?
A water heater dip tube is a plastic tube, typically 3/8 to 1/2 inch in diameter, that runs from the cold water inlet at the top of the tank down to near the bottom.
Its only job is to route incoming cold water down to the lower part of the tank, where the heating element or burner does its work, rather than letting cold water dump directly at the top and mix with the hot water already sitting there ready for use. Depending on the tank’s height, a dip tube generally measures somewhere between 28 and 44 inches long, and it typically stops a few inches short of the very bottom so it doesn’t sit directly in accumulated sediment. Most dip tubes are made from polypropylene, polyethylene, or cross-linked polyethylene (PEX), chosen for their ability to handle constant water flow and sustained heat.
Why Do Dip Tubes Fail?
A dip tube most often fails because chlorine in municipal water gradually breaks down the plastic, a process that speeds up at higher water temperatures and over years of constant exposure.
Sustained heat is a factor on its own too, since water heaters typically run at 120°F to 140°F, and that steady temperature stresses the plastic, particularly at the point where the tube connects to the tank. Hard water adds a second failure path: mineral deposits can build up around and inside the tube, restricting flow or contributing to cracks over time. Age matters as well, since failure becomes noticeably more common in units 10 years or older, though one specific era stands out: dip tubes manufactured between 1993 and 1997 by certain manufacturers used substandard plastic that lacked the additives needed to resist heat and chemical breakdown, making them prone to premature failure regardless of how well the rest of the water heater was built.
What Are the Signs of a Failing Dip Tube?
The clearest sign of a failing dip tube is water that starts hot and turns lukewarm within a few minutes of running, rather than gradually cooling over a longer draw.
That specific pattern, hot at first and then a fairly sudden drop, is what separates a dip tube problem from other common water heater issues: a failing heating element or thermostat tends to produce a more gradual decline, while sediment insulating the element produces reduced capacity rather than an abrupt temperature change. A broken or disintegrating dip tube also tends to shed small white or gray plastic flakes into your plumbing, which can show up caught in faucet aerators or showerheads. Because cold water reaching the element or burner directly, instead of being pre-routed to the bottom, forces the unit to work harder and cycle more often, a failing dip tube can also lead to higher energy use and, over time, early failure of the heating element itself. One useful side note: a failed dip tube does not cause the temperature and pressure relief valve to discharge, doesn’t create unusual tank noise, and doesn’t affect gas valve behavior, which helps rule it out as the cause if you’re seeing those other symptoms instead.
How Do You Confirm It’s Actually the Dip Tube?
You can confirm a dip tube problem with two quick checks: unscrewing a faucet aerator to look for white plastic fragments, and running a hot water tap to see whether the water goes lukewarm suddenly rather than tapering off slowly.
Start by removing the small screen at the end of a frequently used faucet and checking for tiny plastic pieces trapped inside; their presence is a strong, direct indicator that a dip tube is breaking apart somewhere in the system. Next, run a hot-water-only tap and pay attention to the pattern of temperature loss, since a sudden drop supports a dip tube diagnosis more than a slow decline does. If your water heater’s age or serial number places it in the 1993 to 1997 manufacturing window mentioned earlier, that’s an additional reason to suspect the dip tube specifically rather than another component.
What Do You Need Before You Start?
Before replacing a dip tube, you need the power or gas shut off, the cold water supply closed, and a replacement tube sized correctly for your tank’s height.
Turning off power at the breaker for an electric unit, or turning the gas control valve to “off” for a gas unit, comes first, followed by closing the cold water shutoff valve that feeds the tank. You’ll also want a garden hose for draining, an adjustable wrench or pipe wrench for the inlet fitting, plumber’s tape for resealing the connection, and a bucket or towels nearby for any spillage. Replacement dip tubes are sold in standard lengths or as adjustable/trimmable tubes; matching the length to your specific tank height, so the tube ends a few inches above the bottom rather than touching it, matters for how well it performs.
How Do You Replace a Water Heater Dip Tube?
Replacing a water heater dip tube involves shutting off power and water, partially draining the tank, swapping the old tube for a correctly sized new one, and refilling the system.
- Shut off power or gas. Turn off the breaker for an electric unit, or turn the gas control dial to “off” for a gas unit.
- Close the cold water supply valve feeding the water heater, and open a hot water tap elsewhere in the house to relieve pressure in the tank.
- Drain part of the tank. Connect a garden hose to the drain valve at the bottom, run the other end to a floor drain or outside, and drain enough water to get below the level of the inlet fitting at the top; you don’t need to empty the whole tank.
- Disconnect the cold water inlet fitting at the top of the tank, where the dip tube is seated.
- Remove the old dip tube by gripping it firmly and pulling it straight up and out of the tank opening.
- Insert the new dip tube, making sure it’s the correct length for your tank and extends down toward the bottom without touching it, then seat it into the opening.
- Reconnect the inlet fitting, using plumber’s tape on the threads and tightening it snugly without overtightening, which can crack the fitting.
- Close the drain valve fully.
- Refill the tank by opening the cold water supply valve, and leave the hot water tap you opened earlier running until the water flows steadily without sputtering, which confirms the air has been purged from the system.
- Restore power or gas, and check the inlet fitting for leaks once the tank is back up to temperature.
Should You Replace It Yourself or Call a Plumber?
Replacing a dip tube is a reasonable DIY project for a homeowner comfortable with basic hand tools, shutting off utilities correctly, and working around a partially drained tank.
That said, a couple of situations shift this toward a professional job: a corroded or stuck inlet fitting that won’t budge without excessive force, uncertainty about the correct replacement tube length for your specific tank, or a water heater that’s already old enough that a dip tube failure is really a symptom of a unit nearing the end of its overall service life. In that last case, it’s worth having a plumber assess whether a simple part swap makes sense or whether the age and condition of the tank point toward full replacement instead, since sinking a new part into a unit that’s close to failing elsewhere isn’t always the better use of the repair.
Frequently Asked Questions
Can a bad dip tube cause my heating element to fail?
Yes, indirectly. When cold water isn’t routed to the bottom of the tank correctly, it can strike the heating element directly instead of mixing gradually, and the unit also has to cycle more often to compensate, both of which add stress that can shorten the element’s working life over time.
How long do water heater dip tubes usually last?
Most dip tubes last somewhere in the range of 8 to 12 years under normal conditions, though failure becomes more likely as a unit passes the 10-year mark. Water heaters manufactured between 1993 and 1997 are a known exception, since many used substandard plastic prone to much earlier failure.
Is it normal to find plastic pieces in my water?
No, and it’s one of the more reliable signs of a disintegrating dip tube. Small white or gray plastic fragments caught in a faucet aerator or showerhead point directly to a breaking-down tube inside the tank rather than a routine sediment issue.
Do all water heaters have a dip tube?

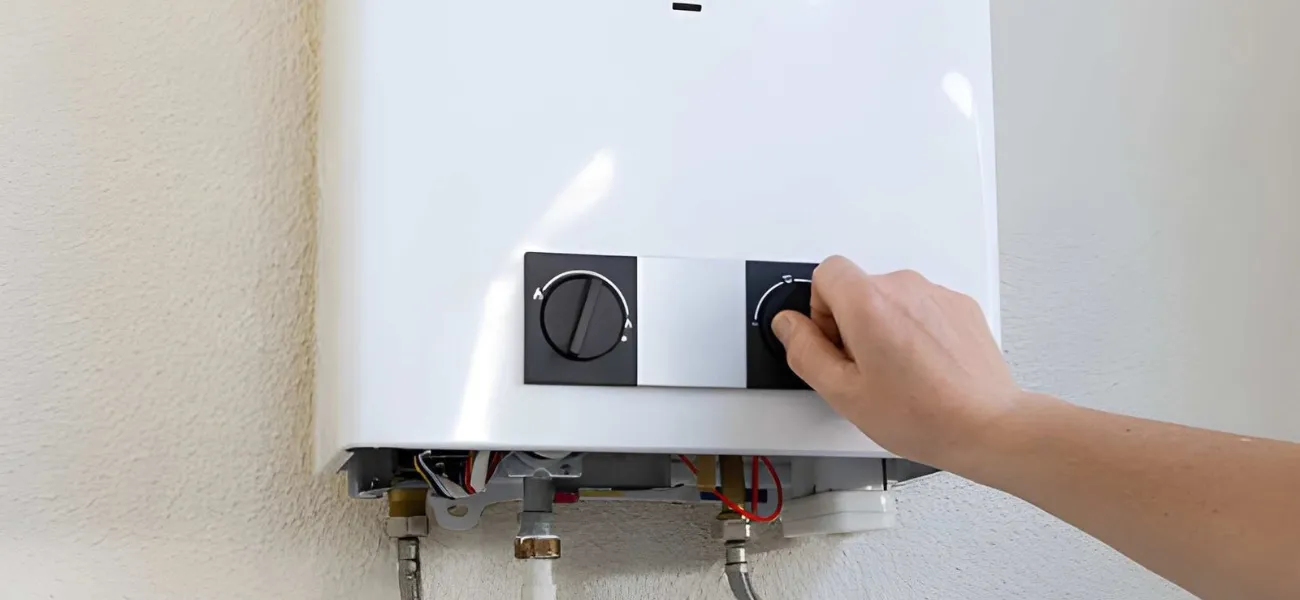

Nearly all storage tank water heaters use one, since it’s the mechanism that keeps incoming cold water from mixing directly with the hot water ready at the top. Tankless water heaters don’t use a dip tube, since they don’t store water the same way.
How much does dip tube replacement typically cost?
The tube itself is a low-cost part, though the total also depends on whether you do the work yourself or hire a plumber for labor.
Can I just skip replacing the dip tube if my water heater is old?
If the unit is already near the end of its typical service life, a plumber can help you weigh a simple dip tube replacement against replacing the entire water heater, since fixing one part on an aging tank doesn’t guarantee the rest of the unit won’t need attention soon after.
Getting Help With a Dip Tube Problem
If you’re seeing lukewarm water or plastic debris and aren’t confident replacing the dip tube yourself, a licensed plumber can confirm the cause and complete the replacement, or advise you if full water heater replacement makes more sense.
